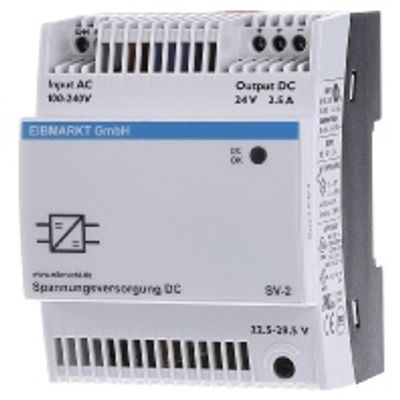

SV-2 - Voltage supply SV-2, MDRC, 24 VDC, 2.5A, adjustably

Snel naar

Prijzen

PrijzenProductomschrijvingProductspecificaties

99,02

Meer over SV-2 - Voltage supply SV-2, MDRC, 24 VDC, 2.5A, adjustably

Productomschrijving

manufacturer-number: SV-2 - EIB KNX Power Supply SV-2 2500 mA / DC The output can be used as power supply for external devices - adjustable up to 29.5V, e.g. for binary inputs 24V DC or other devices (DC). In connection with a choke and a current limiter module each the power supply can be used to supply several EIB KNX lines (see SV-2/DR1 to DR4) Technical data: -Input: 85-264 VAC, 95-250 VDC (terminal 1=L, terminal 2=N) -Output: variable by means of potentiometer from 22.5 to 29.5 VDC -Preset: 24 VDC -Output current: max. 2500 mA -Ripple: max. 50 mV -Operating temperature: -25°C - +70°C -Protection: IP 20 -REG case for DIN rail, 4 TE - SV-2

Productspecificaties

Artikelnummer(s)

SV-2 - Voltage supply SV-2, MDRC, 24 VDC, 2.5A, adjustably
