Productomschrijving

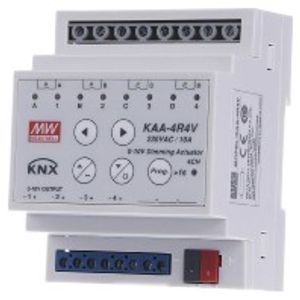

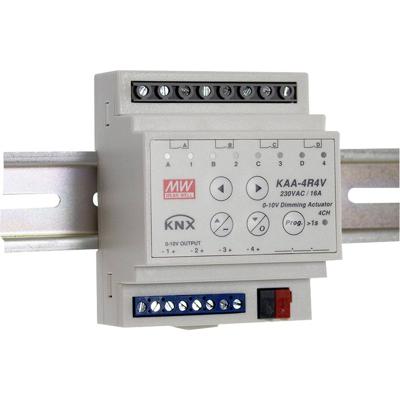

EAN: 4021087049139 - manufacturer-number: KAA-4R4V-10 - The EIB/KNX Dimming actuator KAA-4R4V is a 4 channel device with high quality independent latching relays, suitable for all kinds of MeanWell LED drivers. There is, in addition, a DC 0(1)-10V signal output to perform the dimming on the connected drivers at each channel at the bottom terminal. The dimming curve can be adjusted to linear or logarithmic mode so as to provide an excellent dimming experience for the end users. It also can be used with motion sensors in buildings to save energy.The actuator is powered via the EIB/KNX bus and do not require any additional power supply. The EIB/KNX Dimming actuator KAA-4R4V is featuring both reliability and multi-functionality to meet various needs in a modern building.FeaturesEIB/KNX Dimming Actuator 4-foldDC 0(1)-10V dimmer 4-fold, 230V AC, 16A4 Channels for LED drivers, lighting switching outputs or for ohmic loads up to 3680W per channelany supposable mixed form of switching outputs and lighting output possibleNote: The dimming output of KAA-4R4V(-10) is a passive type!Applicationsdimming &, switching of LED driver and conventional electronic ballastLED indicator for each channellinear or logarithmic dimming curve programmable with ETS softwaremanuel control via push button on deviceprogrammable various time- and scene-functions - KAA-4R4V-10
