Productomschrijving

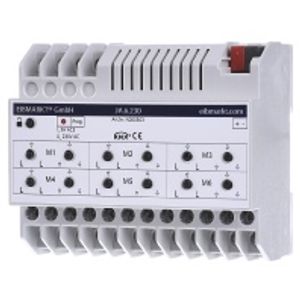

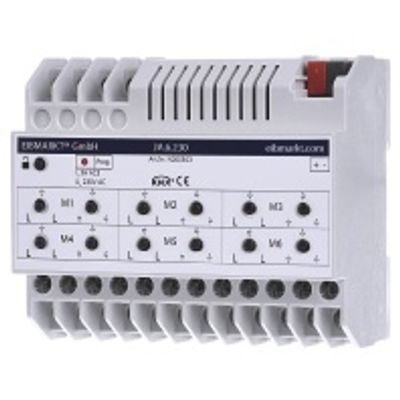

manufacturer-number: JA.6.230 - KNX shutter/blind actuator 6fold 230V, DRA JA.6.230. Very high quality and unique price-/ performance relationship Our own direct distribution (directly ex works) enables us to provide extremely advantageous prices. Thus, you will be able to save more than 30% compared with similar high-quality products. The KNX blind-/shutter actuator JA.6.230 is a MDRC device to be mounted on a 35mm DIN-rail and to be installed into elctrical distributors. The actuator switches up to 6 electrical devices (motors 230V AC). Programmable from ETS 4 and higher. EIBMARKT® GmbH Holding (www.eibmarkt.de) presents a new 230V EIB/KNX shutter/blind actuator 6-fold (N000303) with manual operation (mounting method DRA, modular spacings 6). Special advantages are: Use of bistabile relays, only with this can a preferred state be set in case of bus failure, no additional power supply (KNX only), little space required and a very comprehensive ETS application. The actuator offers extensive additional parameters, such as Scenes (1 bit/1 byte) for runtime and slat, lock, automatic, security and alarm functions, weather alarms (6 pc), driving limit functions, position feedback (1 bit/1 byte) and many more. The device also has 6 independent measurement functions. Sensor readings (KNX) can be processed, tested and passed in various formats (1bit up to 2byte exp.). ETS application details: Measured value processing : Readings ( 1 bit .. 2Byte EXP) come from KNX sensors via bus, regardless of actuator outputs usable, correction / manipulation, addition + multiplication factor, range monitoring, threshold for alarm function adjustable output can be used as alarm source for actuator - device Zoll life message Zoll cyclic object value 1/0 - button function disable / enable via 1bit object - activated homing via 1bit object - blind / shutter operation behavior on bus failure / recovery - Adaptation to drive, start / exit delay - Move to position directly / on end positions, 10 pre-definable positions - scenes 1-byte object, device is assigned to 6 different scenes - Automatic mode: about 1 bit object activated / deactivated, 4 automatic functions, eg Rain, wind, frost, sun or other programmable priorities among themselves, response to activation / deactivation of automatic, 1-byte object for position in automatic mode runtime / slats - lock, 1 bit object behavior in lock programmable - Restriction driving range about 1 bit object activated / deactivated, limits above / below 1 byte objects during the run changeable - Security: 6 alarm sources selected from data processing, priorities among themselves parameterized, response to activation / deactivation of alarms, acknowledgment alarm about 1bit object - restraint: 1 bit or 2 bits operation, response to activation / deactivation of priority control - status: Status output 2 byte object + group status, status of automatic 1-byte object + group status, state security 1-byte object + group status, status, current direction 1bit object status position valid 1bit object status end position up / down 2x 1 bit object status curtain 1-byte object slat status 1 byte object status intermediate position 1, 1 bit object, sending on reaching the position, status intermediate position 2, 1 bit object, sending on reaching the position Technical data: The switch position displays indicate the current driving direction of the drives. Thus, the connected drives can also be activated manually using the assigned key. The blind/shutter actuator JA.6.230 is a device to be mounted on a 35mm DIN-rail and to be installed into electrical distributors. In connection with the product database and ETS-software the actuator serves to control up to 6 electrical devices (motors) with different functions - JA.6.230
